Replaced discontinued model AM7013MTE

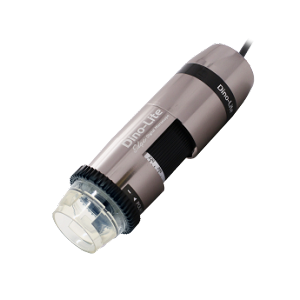

Dino-Lite Edge AM7115MZTE 5MP 10x-220x, metal housing, polarizer + MSA3M holster + ESD Safe Caps
**recommended to pair with ESD stand RK-06AE**
The Dino-Lite 5MP Edge AM7115MZTE includes static dissipative ESD protection caps and delivers unsurpassed image quality with a magnification range from 20x to 220x and now with illumination flexibility options. Integrated with cutting-edge optics, advanced 5MP sensor, and low-loss MJPEG compression, the AM7115MZTE provides incredibly crisp and fluent imaging with low power consumption. The innovative Flexible LED Control (FLC) enables partial illumination to enhance edge contrast and provides intensity adjustment for better adaptability. Together with built-on polarizer, interchangeable front caps, and rugged metal housing, the AM7115MZTE is made to be the tool of choice for wide range of applications.
This model includes:
Static dissipative caps for applications that require ESD protection
MSA3M Metal Holster
Highlights
10x - 220x
Optical magnification power
2592 × 1944 pixels
Capture in full detail with resolution up to 2592 × 1944 pixels
USB 2.0 - Simple setup
Windows and Mac: Fully compatible with Windows 7, 8, 10 & Mac OS 10.5+ including 32-bit and 64-bit systems.
Annotate & Measure: Use simple tools to draw lines, shapes, and text annotations on the image. Calibrate and measure dimensions including lines, circles, and angles.
Flexible LED Control: Additional LED controls within the included software for adjusting LED brightness and on/off toggle by quadrant.
Two-year warranty & free tech support: All Dino-Lite microscopes feature a two-year warranty and include free U.S. based tech support for the life of the product.
Polarizer: Built-in adjustable polarizer greatly reduces glare on reflective surfaces.
Language options: Software interface defaults to English and can be changed to any of 25 additional translations.
Barcode reader: Software feature to use camera for reading from QR codes and over 20 other types of barcodes.
See the complete specifications below.
Working distance & field of view mm| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
|---|
| Working Distance | 60.2 | 33.5 | 20.9 | 13.9 | 4.1 | 5.6 | 9.9 | 11.9 |
|---|
| Field of View | 19.5 x 15.6 | 13 x 10.4 | 9.8 x 7.8 | 7.8 x 6.3 | 3.9 x 3.1 | 2.6 x 2.1 | 2 x 1.6 | 1.8 x 1.4 |
|---|
| Depth of Field | 2.5 | 1.8 | 1.5 | | | | | 0.1 |
|---|
Working distance & field of view inch| Magnification | 20 | 30 | 40 | 50 | 100 | 150 | 200 | 220 |
|---|
| Working Distance | 2.370 | 1.319 | 0.823 | 0.547 | 0.161 | 0.220 | 0.390 | 0.469 |
|---|
| Field of View | 0.768 x 0.614 | 0.512 x 0.409 | 0.386 x 0.307 | 0.307 x 0.248 | 0.154 x 0.122 | 0.102 x 0.083 | 0.079 x 0.063 | 0.071 x 0.055 |
|---|
| Depth of Field | 0.098 | 0.071 | 0.059 | | | | | 0.004 |
|---|
Specifications
| LEDs | White (8) |
|---|
| Polarization | Yes |
|---|
| Dimensions | 10.5cm (L) x 3.2cm (D) (4.13" x 1.26") |
|---|
| Weight | 135g (4.76oz) |
|---|
| Cable Length | 182cm (71.65 in) |
|---|
| Magnification Range | 10x - 220x |
|---|
| Working Distance | Standard |
|---|
| Lens Type | Glass |
|---|
| Megapixels | 5 MP |
|---|
| Sensor Type | CMOS |
|---|
| Resolution | 2592 × 1944 pixels |
|---|
| Frame Rate (max) | 30 FPS |
|---|
| Image Save Formats (Windows) | BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX |
|---|
| Image Save Formats (Mac OS) | JPEG, PNG |
|---|
| Video Save Formats (Windows) | WMV, FLV, SWF |
|---|
| Video Save Formats (Mac OS) | MOV |
|---|
| Connection Type | USB 2.0 |
|---|
| Included Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
|---|
| Imaging Standards | UVC |
|---|
| Flexible LED Control | Yes |
|---|
| Measurement | Yes |
|---|
| Automatic Magnification Reading | No |
|---|
| Extended Depth of Field | No |
|---|
| Enhanced Dynamic Range | No |
|---|
| Magnification Lock | Yes |
|---|
| Body Material | Aluminum Alloy |
|---|
| Microtouch Sensor | Yes |
|---|
| Package Includes | Microscope, Carry Pouch, Software CD, Edge Calibration Target, Holster, Alternate end caps |
|---|
| Warranty Period | 2 years |
|---|
| Manufactured in | Taiwan |
|---|
| Service & Support | U.S. (www.dinolite.us) English & Spanish |
|---|
| Regulatory Approval | CE, FCC |
|---|
