Dino-Lite Portable Handheld USB Digital Microscopes
> Dino-Lite Edge Plus AF4115T-GRFBY 1.3MP 10x-220x (excitation 480nm/570nm, emission: 510nm/610nm) (4 blue & 4 yellow LEDs), Wireless Ready
Dino-Lite Edge Plus AF4115T-GRFBY 1.3MP 10x-220x (excitation 480nm/570nm, emission: 510nm/610nm) (4 blue & 4 yellow LEDs), Wireless Ready
Dino-Lite Edge Plus AF4115T-GRFBY 1.3MP 10x-220x (excitation 480nm/570nm, emission: 510nm/610nm) (4 blue & 4 yellow LEDs), Wireless Ready
Price
Your Price:
$899.00
Availability:
Please Email for Price List
Part Number:
AF4115T-GRFBY
Email a friend
Description
Customer Reviews
Camera/PDF
Feature 13
Dino-Lite Edge Plus AF4115T-GRFBY 1.3MP 10x-220x (excitation 480nm/570nm, emission: 510nm/610nm) (4 blue & 4 yellow LEDs), Wireless Ready
**This model is wireless-ready but requires the
WF-20 adapter
for wireless functionality. **
(Replaced AM4115T-GRFBY)

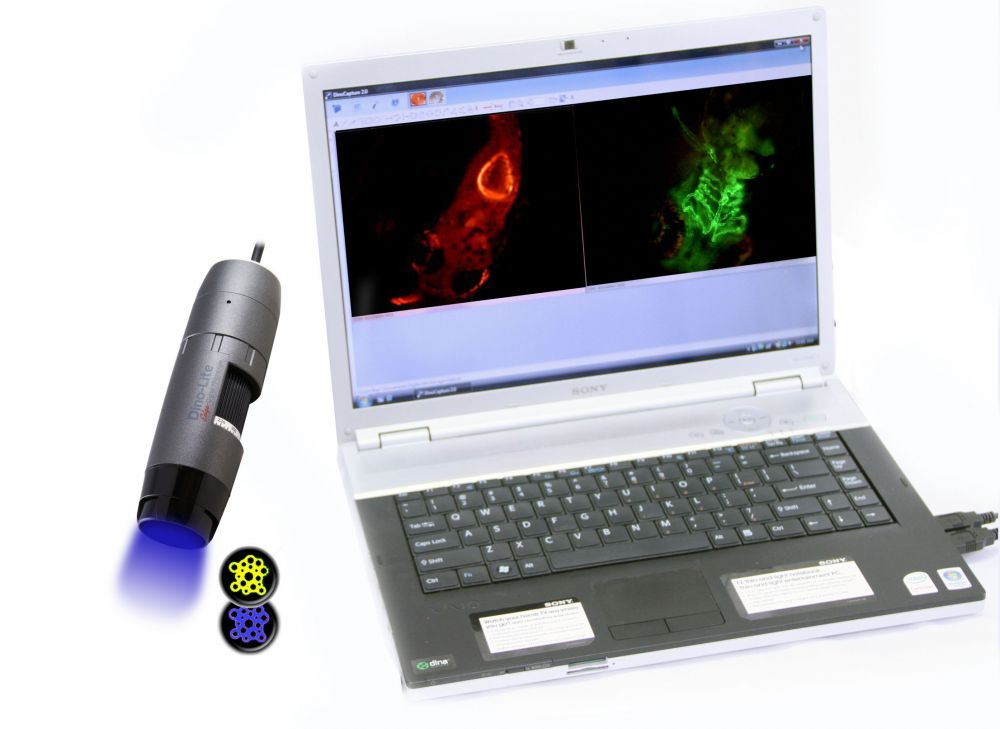

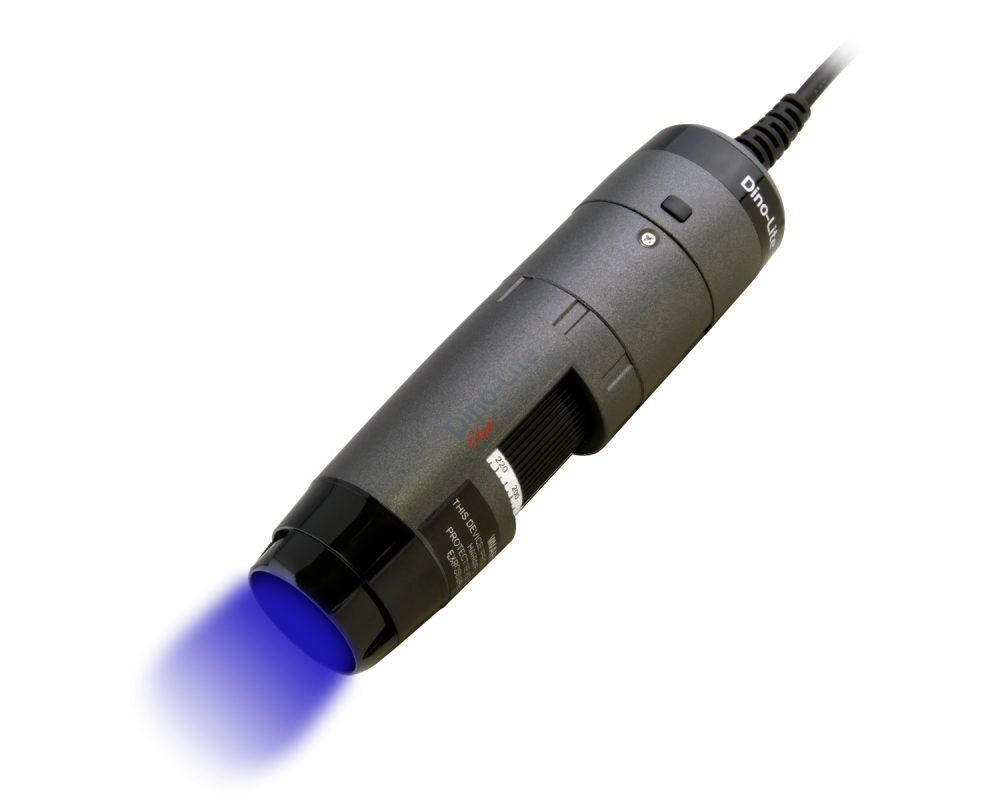

The Dino-Lite Edge AF4115T-GRFBY digital microscope is optimized for research and viewing objects involving fluorescent objects using 2 different sets of LED’s, 4 Blue LEDs at an excitation of 480nm and 4 Yellow LEDs at an excitation of 575nm which are switchable through the software, and emission at 510nm/610nm. This model was designed for applications in which GFP and MCherry are being used in the same specimen, eliminating the need to switch microscopes and/or lighting and filters. The AF4115T-GRFBY can magnify up to 220x magnifications depending of working distance. Green fluorescent objects pop out under this handheld microscope and you can clearly see its green glow.
Optimized for research and viewing objects involving fluorescent objects using 2 different sets of LED’s, 4 Blue LEDs at an excitation of 480nm and 4 Yellow LEDs at an excitation of 575nm which are switchable through the software, and emission at 510nm/610nm.
Highlights
10X - 220X Magnification
1280 x 1024 pixels
USB 2.0
Wireless Ready
Windows & Mac compatible
Annotate & Measure
2 Year Warranty
Software supports Muti-language options
Software features Barcode Reader
Working distance & field of view
mm
Magnification
20
30
40
50
100
150
200
220
Working Distance
60.2
33.5
20.9
13.9
4.1
5.6
9.9
11.9
Field of View
19.5 x 15.6
13 x 10.4
9.8 x 7.8
7.8 x 6.3
3.9 x 3.1
2.6 x 2.1
2 x 1.6
1.8 x 1.4
Depth of Field
2.5
1.8
1.5
0.1
Working distance & field of view
inch
Magnification
20
30
40
50
100
150
200
220
Working Distance
2.370
1.319
0.823
0.547
0.161
0.220
0.390
0.469
Field of View
0.768 x 0.614
0.512 x 0.409
0.386 x 0.307
0.307 x 0.248
0.154 x 0.122
0.102 x 0.083
0.079 x 0.063
0.071 x 0.055
Depth of Field
0.098
0.071
0.059
0.004
Specifications
Measurement
Yes
Flexible LED Control
No
Automatic Magnification Reading
No
Extended Depth of Field
No
Enhanced Dynamic Range
No
Wireless Ready
Yes
Magnification Lock
Yes
Body Material
ABS Plastic
Microtouch Sensor
Yes
LEDs
Blue (4), Yellow (4)
Polarization
No
Excitation Wavelength (LED)
480nm/570nm
Emission Wavelength (Filter)
510nm/610nm
Magnification Range
10x - 220x
Working Distance
Standard
Lens Type
Glass
Megapixels
1.3 MP
Image Save Formats (Mac OS)
JPEG, PNG
Video Save Formats (Windows)
WMV, FLV, SWF
Operating System
Windows XP, Vista, 7, 8, 10, Mac OS 10.5+
Connection Type
USB 2.0
Included Software
DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Imaging Standards
UVC
Sensor Type
CMOS
Resolution
1280 × 1024 pixels
Frame Rate (max)
30 FPS
Dimensions
10.5cm (L) x 3.2cm (D) (4.13" x 1.26")
Weight
105g (3.7 oz)
Cable Length
182cm (71.65 in)
Package Includes
Microscope, Carry Pouch, Software CD, Edge Calibration Target
Warranty Period
2 years
Manufactured in
Taiwan
Service & Support
U.S. (www.dinolite.us) English & Spanish
Regulatory Approval
CE, FCC
8MB
